Digital Plate-Line Electrostatic Oil Fume Purifier for Higher Grease Load Kitchens

Model: DL-4000KB to DL-56000KB
Specification: Low-level discharge plate-line ESP oil fume purifier
Size: 935x714x757 mm to 1200x2262x2063 mm
Price: Contact us
Description: Digital plate-line ESP oil fume purifier for low-level discharge applications requiring higher purification efficiency and stable operation.
Online ordering

Need equipment sizing or a price quote?

Send airflow, pollutant type, material preference, voltage and destination. PureAirTek will recommend suitable industrial equipment and quote range.

Request Quote Talk to Engineer Email Details

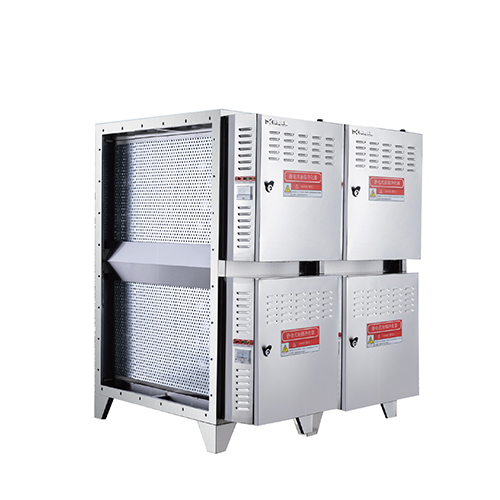

Digital Plate-Line Electrostatic Oil Fume Purifier 02

This plate-line electrostatic oil fume purifier is positioned for kitchens with heavier cooking smoke or longer operating hours. It is used when standard grease filters are not enough and the exhaust system needs active electrostatic collection before the fan or discharge outlet.

Best-Fit Applications

Application	Oil Smoke Condition	Why This Model Fits
Heavy frying kitchen	Higher grease aerosol load	Larger plate collection area supports stronger oil smoke capture when cleaned regularly.
Food court exhaust branch	Long daily operation	Digital status indication supports routine inspection.
Kitchen retrofit project	Existing duct with oil smoke complaints	Can be sized to improve removal before discharge.

What It Does and Does Not Remove

Electrostatic oil fume purification is designed for grease aerosol, oil smoke and fine cooking particles. It does not replace correct hood capture, fire safety cleaning, duct design or final odor treatment when strong cooking odor remains. For odor-sensitive locations, UV or activated carbon polishing may be added after oil smoke removal.

System Layout

A typical kitchen exhaust system includes capture hood, grease filter, electrostatic oil fume purifier, fan, ductwork and discharge outlet. The purifier should be installed where maintenance access is practical because collecting cells need regular cleaning to keep efficiency and airflow stable.

Selection Parameters

Parameter	What to Confirm	Design Impact
Cooking type	frying, wok cooking, grilling or high-oil restaurant cooking	Determines grease load and required collection area.
Airflow	Hood exhaust volume and duct pressure	Determines purifier size and fan selection.
Installation space	larger service space for cell removal and cleaning	Determines horizontal, vertical or compact layout.
Cleaning access	Cell removal direction and cleaning frequency	Important for fire safety and stable performance.
Odor target	Oil smoke only or odor-sensitive discharge	Decides whether UV or carbon polishing is needed.

Common Mistakes

Choosing equipment by nominal airflow without checking actual hood capture.
Installing the unit where electrostatic cells cannot be removed for cleaning.
Expecting oil fume purification to solve all cooking odor by itself.
Using too small a fan for long ducts and high pressure drop.

Quotation Data to Prepare

Send kitchen type, cooking equipment list, hood size, airflow if known, duct route, installation space, discharge location, voltage and destination country. Photos or layout drawings help PureAirTek recommend the right purifier structure and capacity.
